SIMBELGIUM BV

Asetek Forte Sim Racing 2 Pedals

Asetek Forte Sim Racing 2 Pedals

Regular price 558.00 €
Regular price Sale price 558.00 €
Sale Sold out
Tax included.
This product is currently available for pre-order, with an estimated delivery time of 4-6 days. Do not hesitate to contact us to check its availability in store.

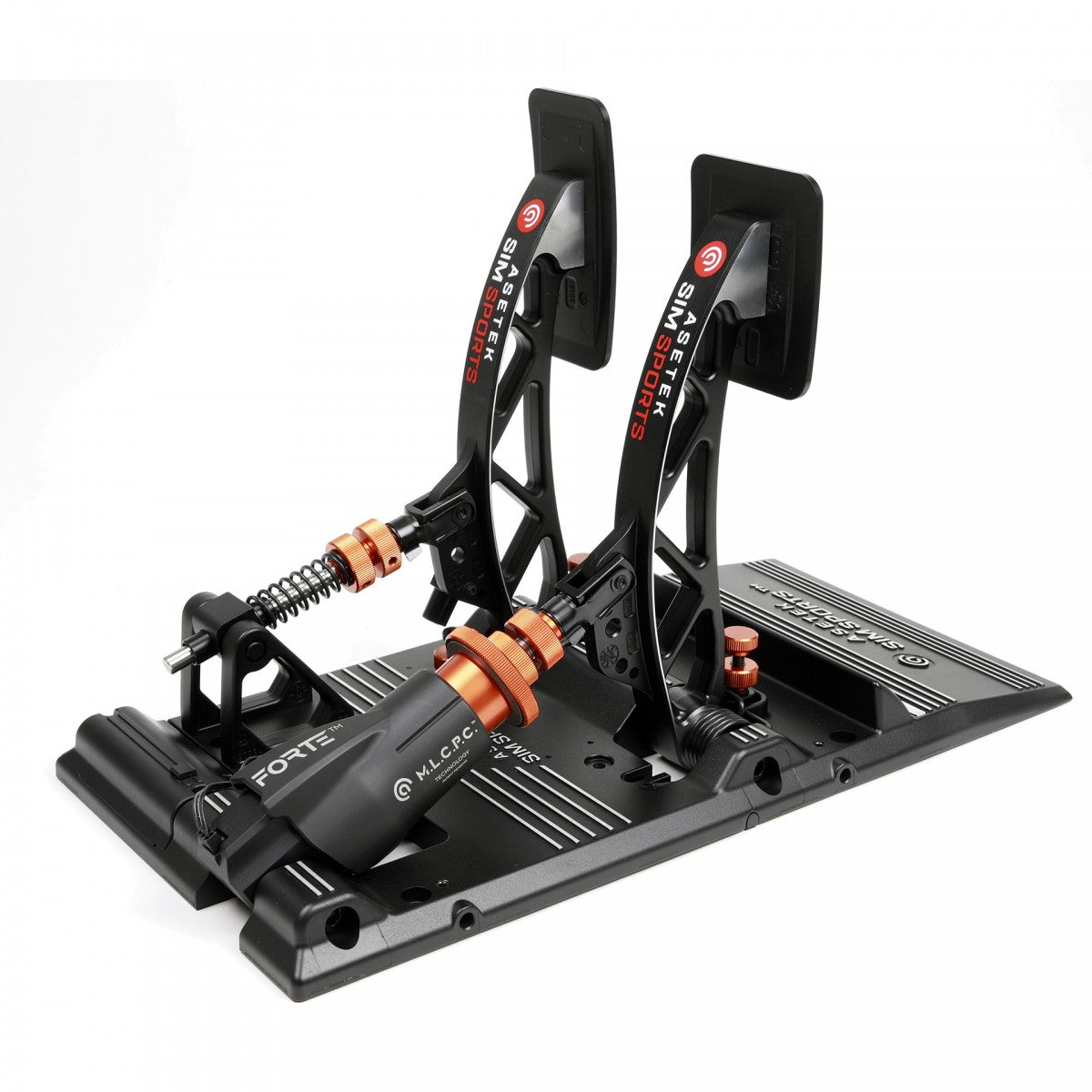

Inspired by real-world motorsport, the Forte Sim Racing Simulation Pedal Set has been thoroughly tested by drivers and racing simulators. With this feedback in mind, the simulation pedals were designed and developed. The M.L.C.P.C.™ (Mechanical Load Cell Powered Cylinder) brake cylinder has been designed to give you a realistic braking experience and has been rigorously tested with a pedal force of up to 180 kg.

Verified by drivers and racing simulators.

The design was designed with the user experience in mind, where all adjustable elements are colored for quick, intuitive handling and mainly without the need for specific tools. Forte simulation pedals are highly adjustable to allow you to channel your inner driver by adjusting the stroke and harshness settings to your exact preferences. And using Asetek SimSports® RaceHub™ software, you'll be ready to race in no time.

The M.L.C.P.C (Mechanical Load Cell Powered Cylinder) brake cylinder from Asetek SimSports offers you, with just a few details of a complete hydraulic system, an authentic racing car driving experience. The simulation pedal set is completely made in Denmark - designed, developed and assembled in Denmark. The brake cylinder is equipped with a specially designed load sensor that detects actual changes in force on the pedal face, up to 180 kg of force on the pedal face itself (with the hardest of 4000N elastomers depressed 12mm / until 2nd stage is engaged), making it the most realistic braking experience you can get.


Characteristic

- Exquisite, radical and minimalist Danish industrial design
- Adjustable pedal stops
- Adjustable stroke settings
- Black anodized aluminum pedal base, pedal arms and pedal plates, with CNC cut surfaces.
- Pedal base with integrated footrest and RGB LED can be adjusted, dimmed or turned off completely in the RaceHub software
- Adjustable pedal plates that can be moved along the x and y axes
- Calibrations carried out in RaceHub are automatically saved in our EPROM (erasable read-only programmable memory). This allows you to keep the calibrations (pressures, dead zones, etc.) for each simulator/game (the values of 0 and 100% must be defined in the game).
- Single USB connection to PC from the pedal base, whether you have 2 or 3 pedals
- Each pedal can be calibrated using the intuitive and easy-to-use RaceHub software
- Upper and lower pedal dead zones can be adjusted via RaceHub software
- All adjustable mechanical elements are orange by default
- In-house developed electronics with 16-bit resolution and automotive-grade pressure sensor
- Ability to easily add a clutch pedal to the throttle and brake assembly
- Made in Denmark
- Sustainable manufacturing with 100% reuse of waste on site
- Designed and tested for 1,000,000 activations, which far exceeds any race car specification


Braking

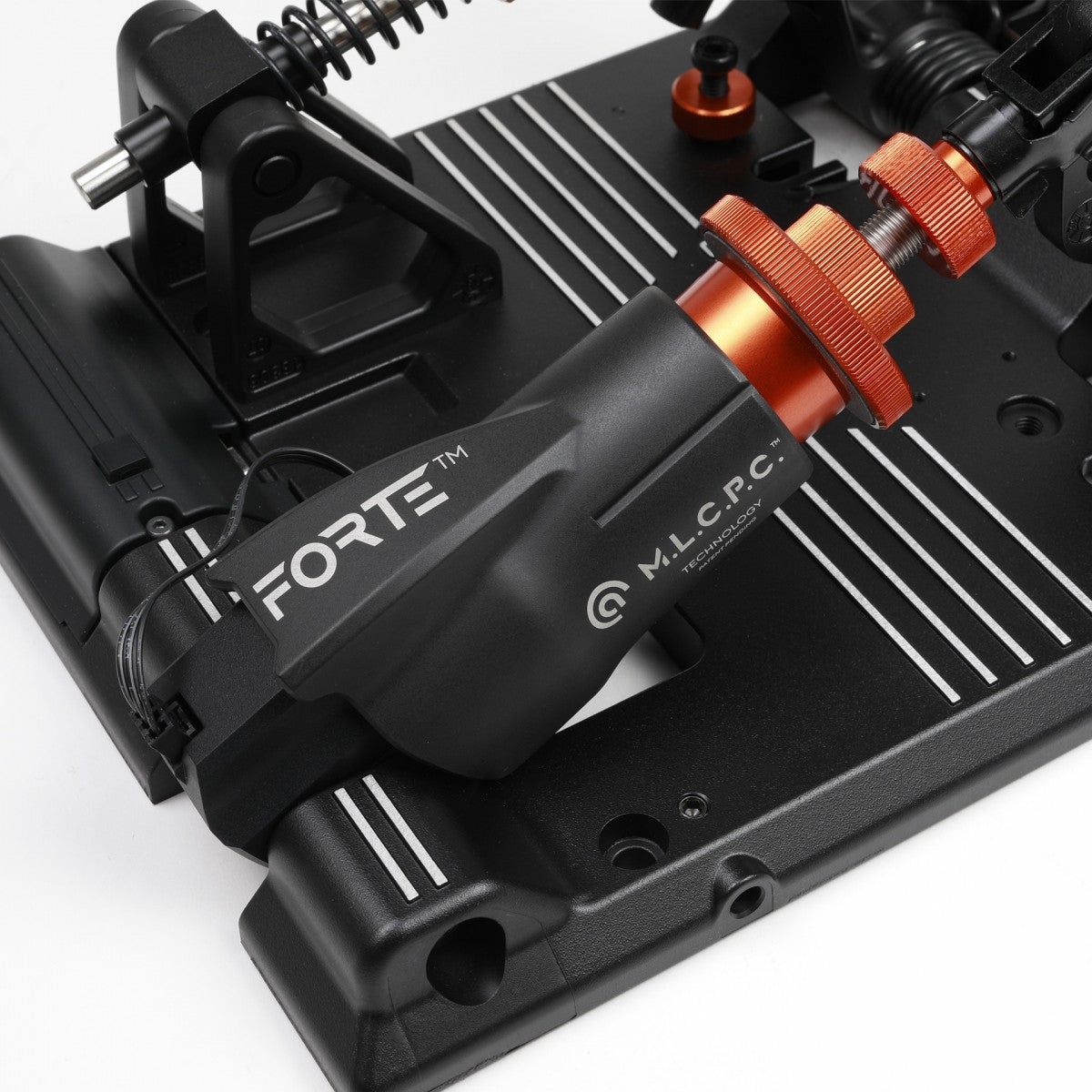

- The patented M.L.C.P.C. brake cylinder. (Mechanical Load Cell Powered Cylinder) gives you the experience of driving a real racing car
- Zero-play cast aluminum pedal arm with built-in durable ball bearings and bronze bushing at keyway rotation point
- Sustainable manufacturing with 100% reuse of waste on site
- Load cell will detect up to 180kg of force on the pedal face with the hardest elastomer depressed 12mm / up to 2nd step
- Mesh ratio between pedal pressure and load cell deflection ensuring constant and complete resolution for any user, regardless of elastomer hardness
- Two-stage system that mimics the hard and soft stages of a real race car
- Initial touch hardness manually adjustable to mimic the perfect distance between brake pads and brake rotor

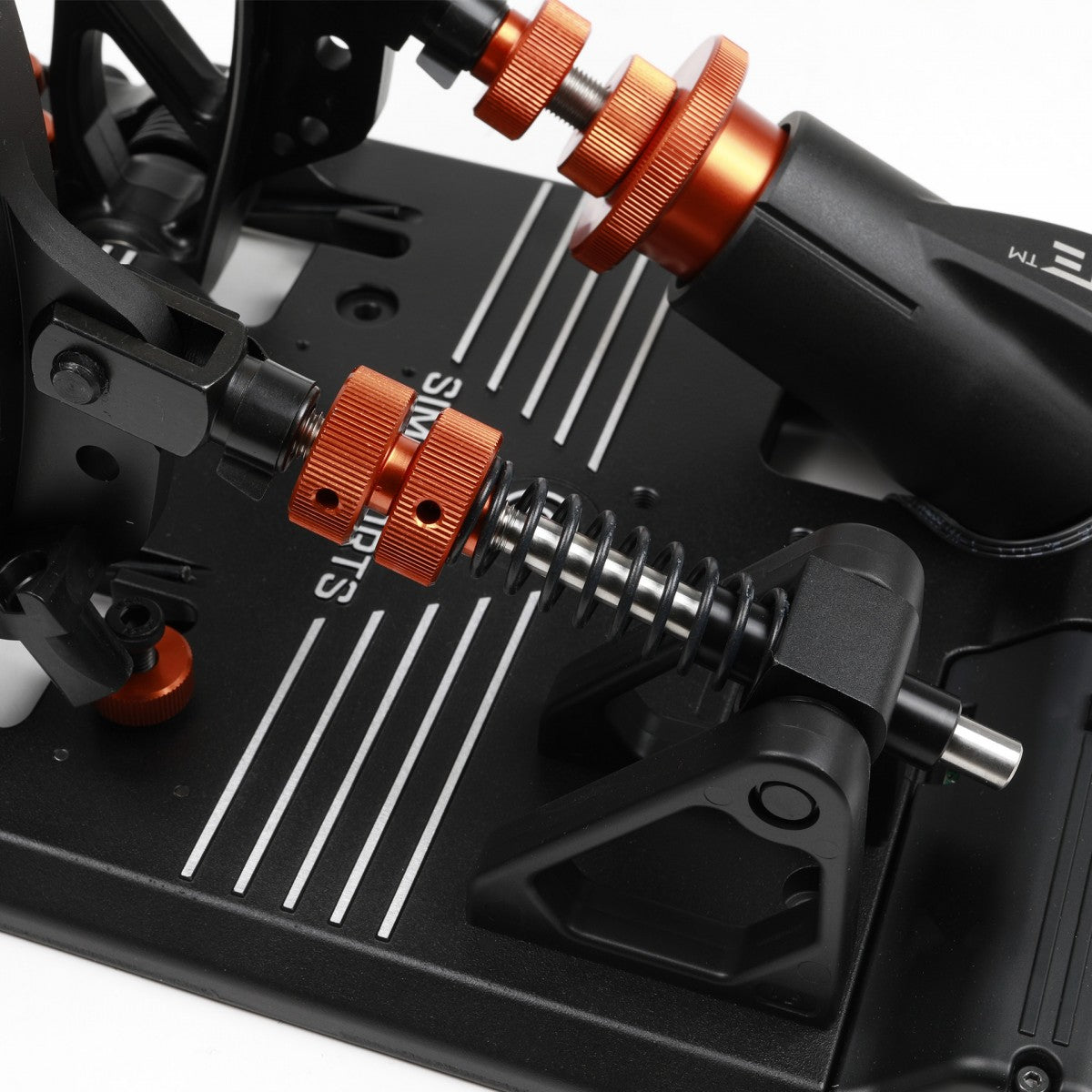

- Two interchangeable elastomers for hardness adjustment, combined with a physical bumper and integrated expansion chamber to mimic the feel of a race car without overloading the elastomers
- Pedal arm designed for a force of 200 kg and a breaking pressure of up to 700 kg!


Acceleration

- Zero-play cast aluminum pedal arm with built-in durable ball bearings and bronze bushing at keyway rotation point
- Sustainable manufacturing with 100% reuse of waste on site
- 16-bit wear-free, zero-maintenance magnetic TPS (Throttle Position Sensor) throttle position sensor
- Custom throttle curves can be adjusted and fully customized in RaceHub software to mimic the gradual opening of a real race car throttle. For example, a linear curve in dry weather and a gradual curve in wet weather
- Interchangeable spring for greater variation in pedal hardness
- Pedal arm designed for a force of 200 kg and a breaking pressure of up to

700 kg ! Dimensions
Depth, width and height: 457 mm x 212 mm x 256 mm
Weight: 3kg
