Moza R12 Direct Drive Base

• On display and available for testing in our showroom
• Pick up your order in store and enjoy 15 free minutes on our simulators

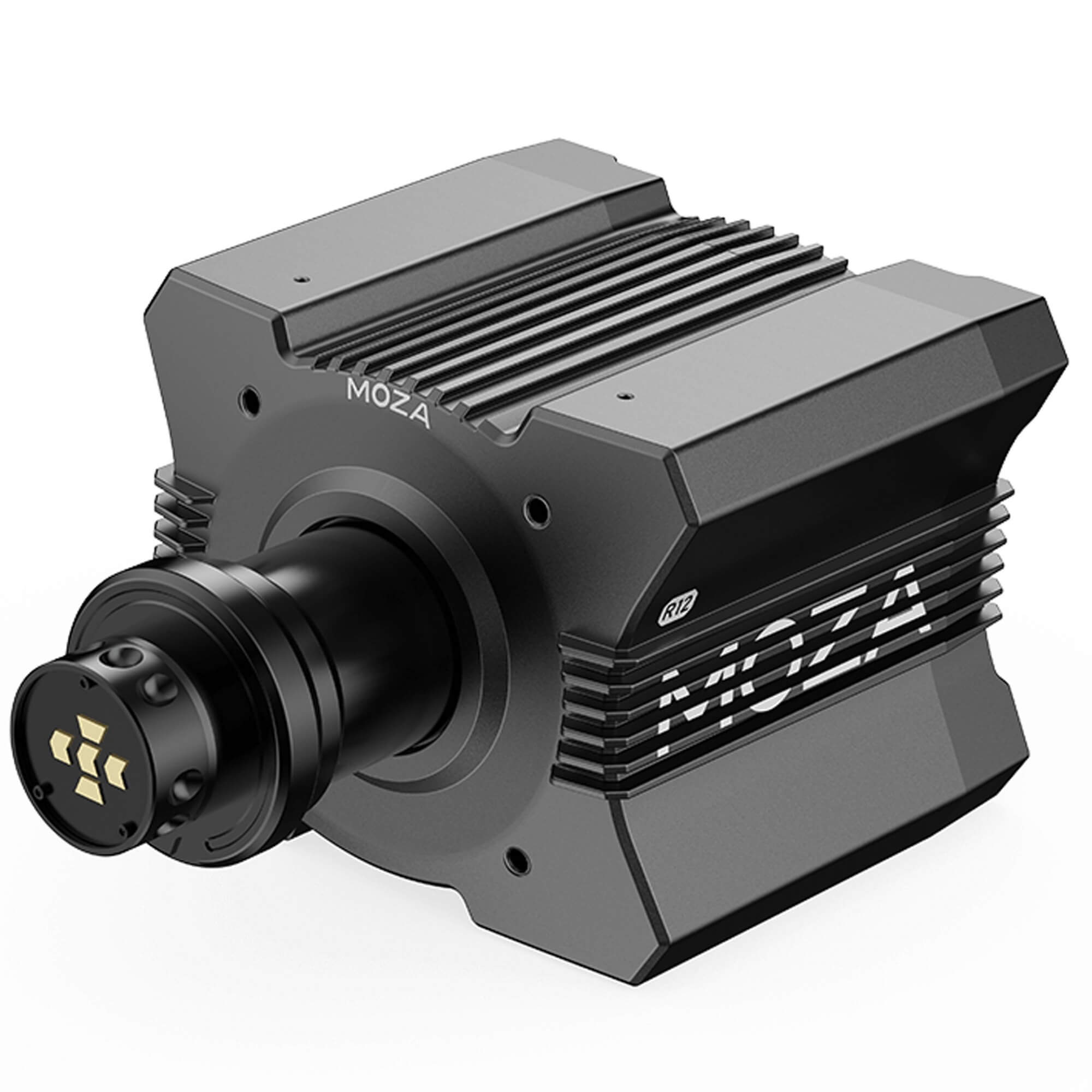

The Direct Drive R12 is designed to deliver a stable and authentic 12Nm output torque. It perfectly reproduces the steering force of road and race cars, providing detailed and immersive feedback of the vehicle and track surface directly to your hands.

• Inclined pole design: The R12 motor incorporates advanced technology derived from the R21 base, using a unique inclined pole design. The motor is intelligently designed in three sections with precisely calculated angles, which significantly reduces cogging, torque ripple, electromagnetic vibrations, and noise levels compared to conventional motors. Thanks to its innovative design, the R12 motor operates smoothly and quietly, offering unmatched smoothness and minimal noise and vibrations during operation.

• Design philosophy: The R12 base is designed with a high coercivity neodymium magnet motor. Unlike low coercivity motors, it does not lose strength when hot and can reach high temperatures with minimal losses. The need for a low temperature coefficient in high coercivity motors allows for preserving a wide range of nuance in motor operation.
• Ultra-low torque ripple: The R12 base motor uses an 18-slot, 16-pole design, the highest number of poles in its class. This design enables low torque ripple and exceptional shock absorption performance for a smooth and seamless driving experience.
• Ultra-low latency and steering response: Enjoy ultra-low force feedback latency and steering response thanks to the 280 MHz processor and optimized algorithms. This advanced technology allows drivers to control their vehicle with precision and ease, delivering an immersive and dynamic driving experience.

• Next-generation FFB filtering algorithm: The R12 base features MOZA's latest force feedback filtering algorithm, providing enhanced dynamic feedback that makes oversteer and understeer clearer and more refined.

• Aerospace-grade aluminum: Experience unmatched quality and durability with the MOZA R12. The entire casing is made from aerospace-grade aluminum alloy, with automotive-grade paint and laser engraving, resulting in a durable and highly resistant finish.

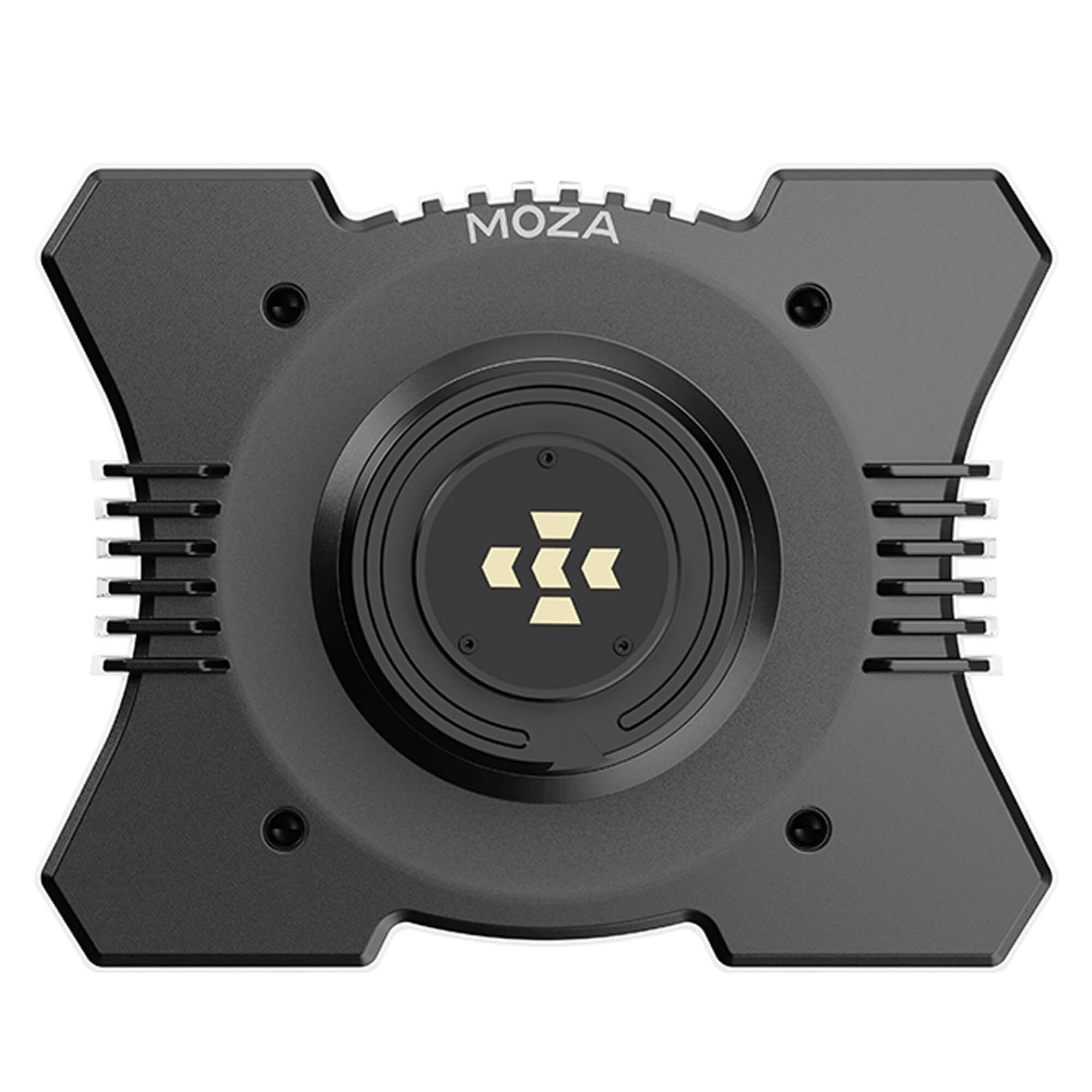

• Industrial slip ring: The base and the steering wheel are connected by a military-grade conductive slip ring with a lifespan of over 5 million rotations. The unique and patented design offers extremely high stability and durability while allowing infinite high-speed rotation.

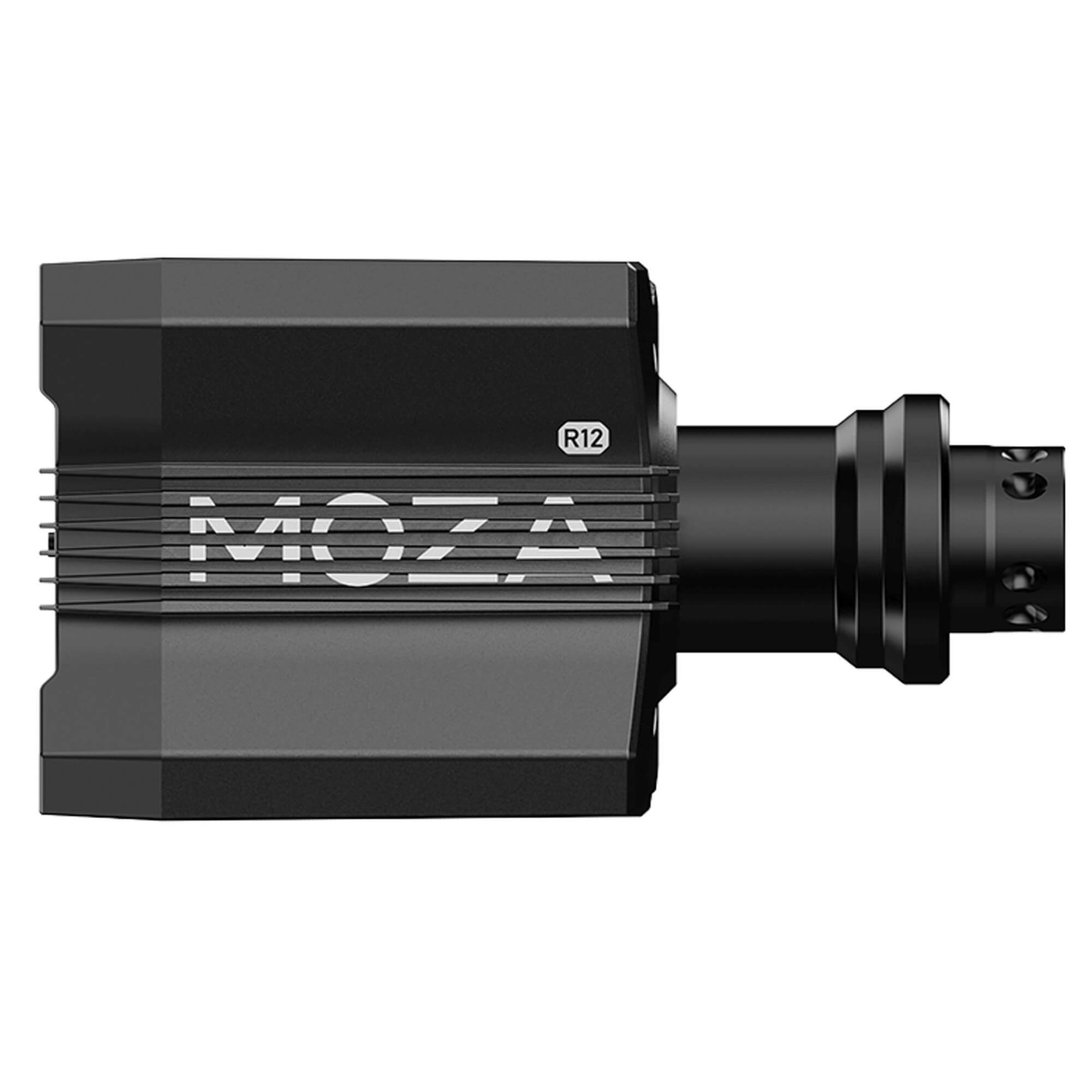

• Compact design: The motor design achieves a compact size while maintaining a standard 4-hole mounting pattern. It can be easily installed on the vast majority of chassis available on the market. In tighter spaces, the base can be assembled with a desk mount.

Firmware

Specifications

• Housing material: Aluminum
• Cooling type: Passive
• Usable platform: PC (Windows)
• Motor type: Direct Drive
• Maximum steering angle: Unlimited
• Maximum torque: 12 Nm
• Maximum power: 216W
• Input voltage: 110V~220V AC - 36V DC
• USB refresh rate: 1000Hz
• Quick Release Connection: Compatible D1

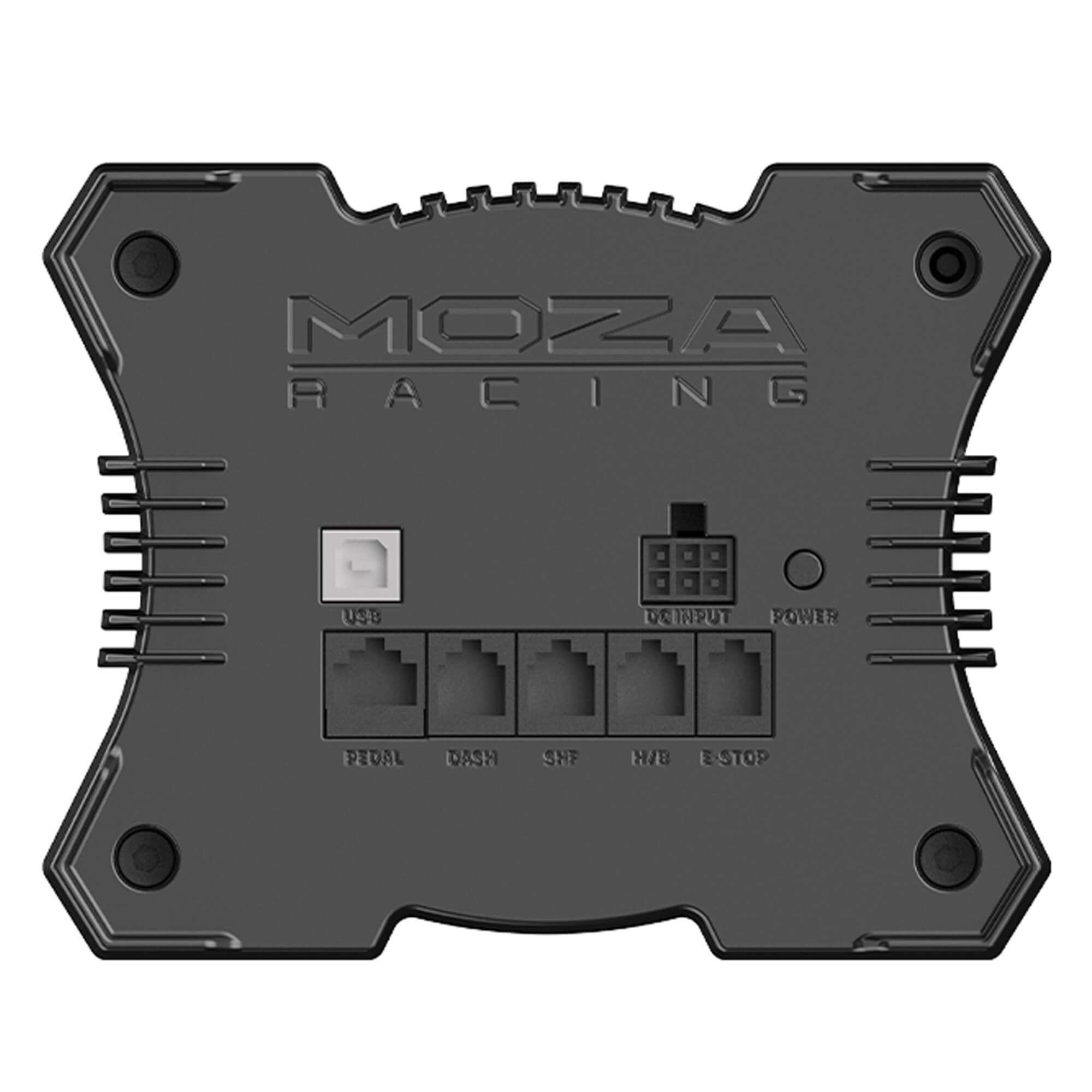

• Connection port: Power switch, power supply, data, emergency stop switch, display screen, Gear Lever, Handbrake.
• Mounting: 4 mounting points on the base (RSeat compatible); exclusive bracket allowing angle adjustment and side mounting; desk mounting bracket.
• Compatibility: Works with all MOZA steering wheels, except CS V1, GS V1, RS V1.
