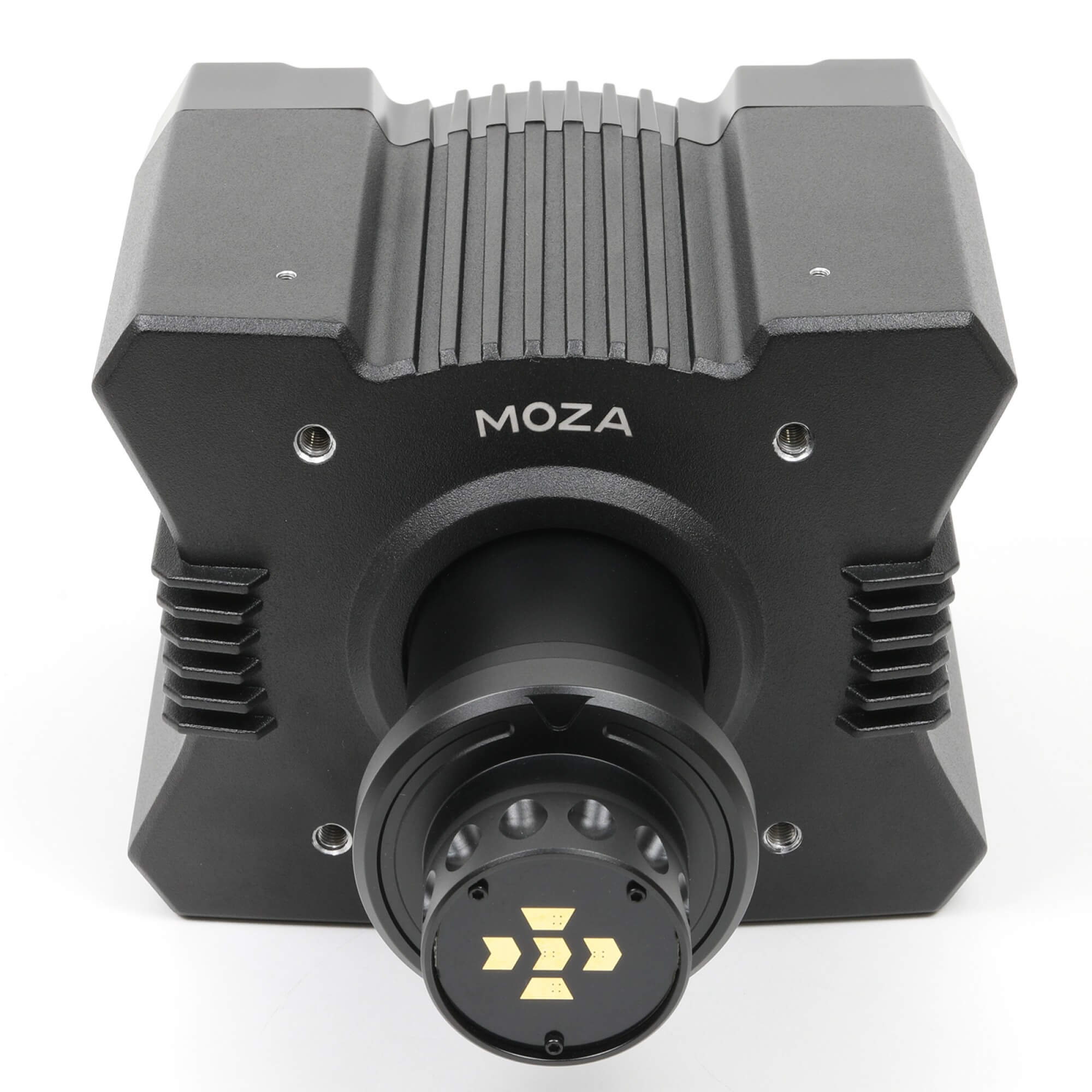

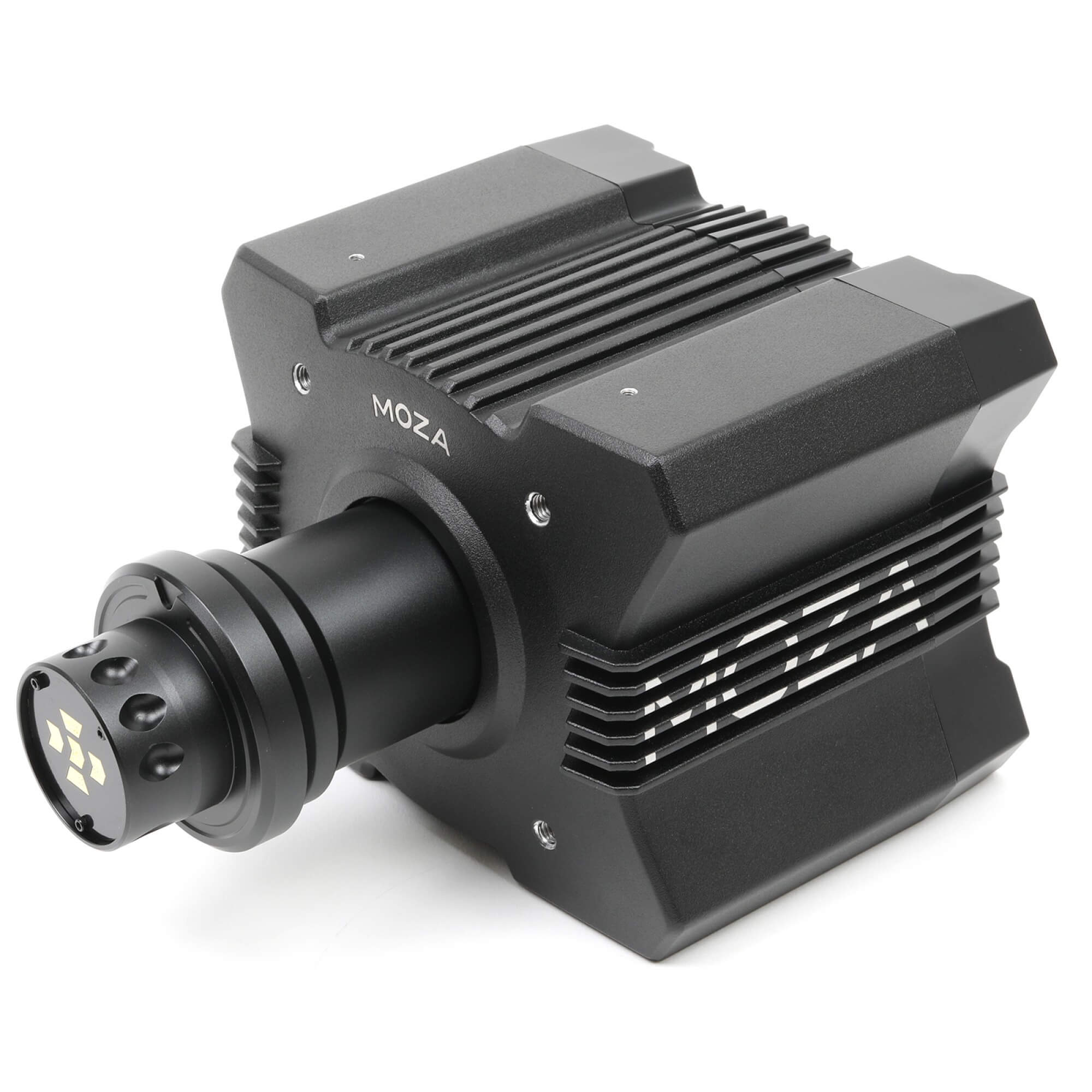

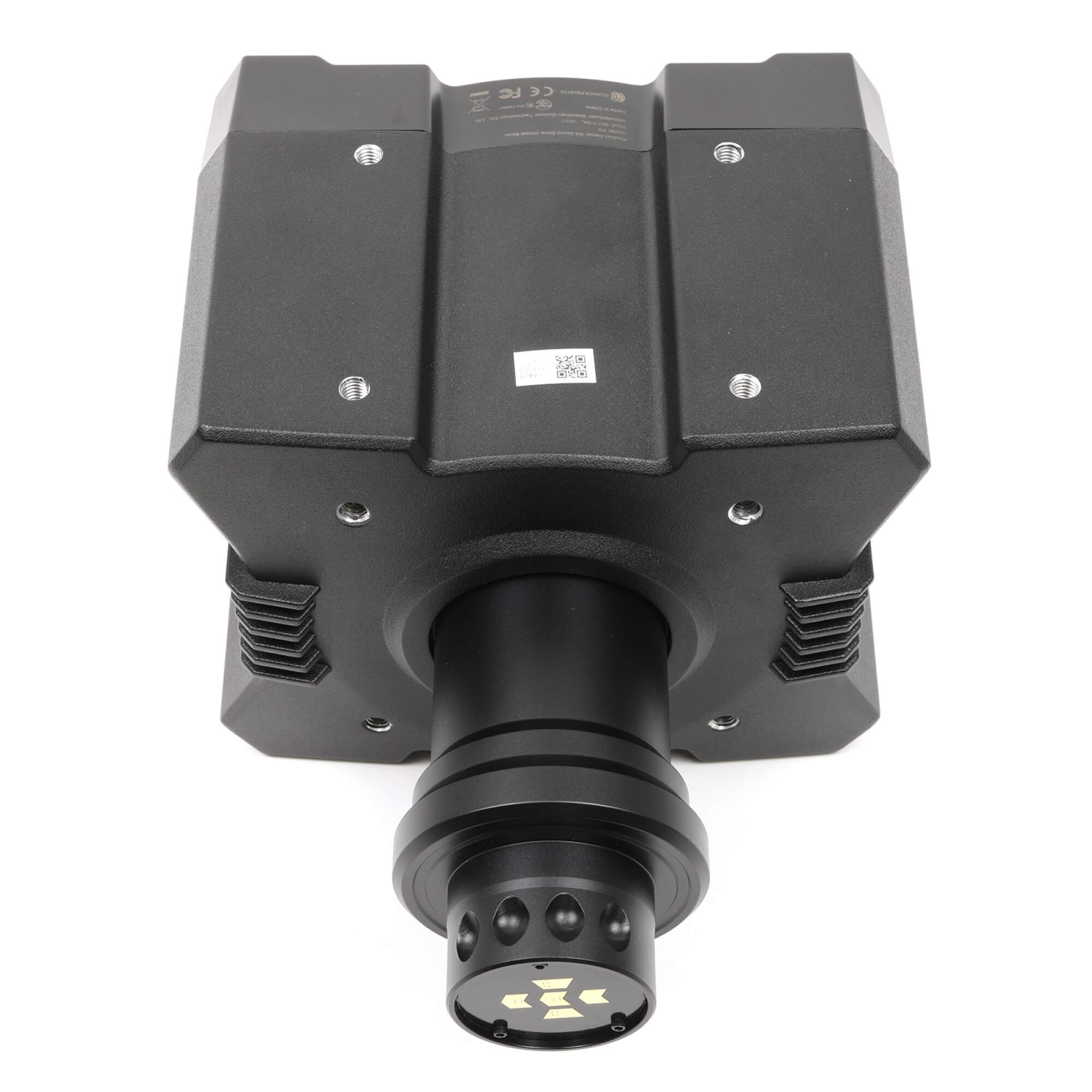

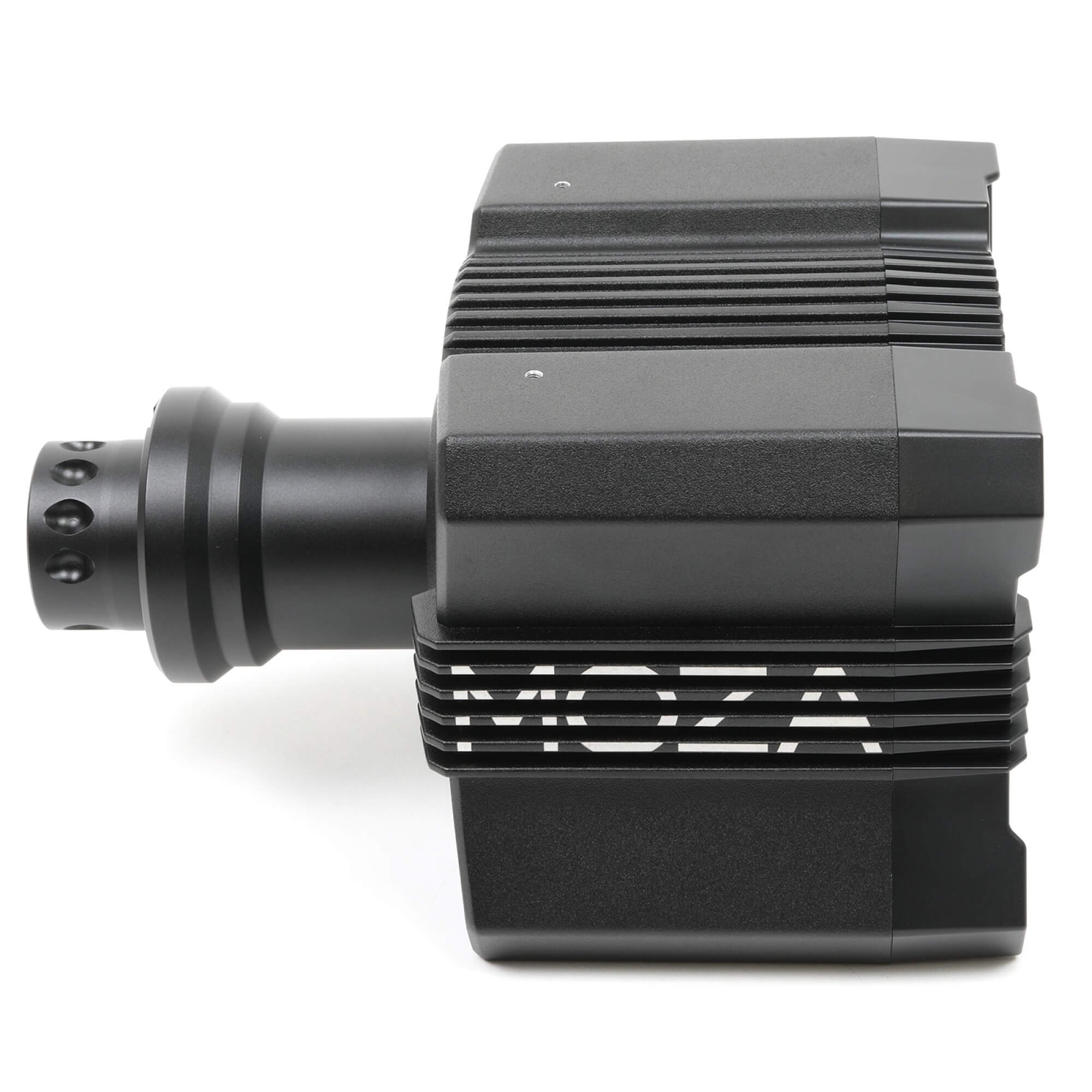

Moza R9 V2 base Direct Drive

• On display and available for testing in our showroom
• Pick up your order in store and enjoy 15 free minutes on our simulators

The MOZA R9 V2 Direct Drive Wheelbase features an exceptional torque of 9 Nm and a professional direct drive servo motor, which can meet the gaming and training needs of most drivers and provide a realistic racing experience. The R9 V2 Direct Drive Wheelbase also features an intelligent temperature control system that monitors the temperature of the motor and electronic components in real time to ensure stable operation in competition through temperature control strategies. Designed with a monoblock body machined from aerospace-grade aluminum alloy and equipped with zero-latency wireless technology, the R9 V2 Direct Drive Wheelbase is lightweight, durable, and stable.

Firmware

9 Nm of torque

• Unmatched quality and durability.
• The temperature control strategy uses built-in temperature sensors to ensure stable operation and excellent endurance.
• Wireless transmission of data and power between the wheel and the base.
• No matter the complexity of force feedback calculations. The unique Quad CPU can handle the load with maximum precision.
• Base, wheel, pedal settings, etc. can be modified via MOZA APP. Settings can be imported with one click to new simulators.
• The R9 V2 can be connected to the entire range of MOZA Racing equipment.

• Fully compatible with all RSeat cockpits.


Specifications

• Housing material: Aluminum
• Cooling type: Passive
• Usable platform: PC (Windows)
• Motor type: Direct Drive
• Maximum steering angle: Unlimited
• Maximum torque: 9 Nm
• Maximum power: 180W
• Input voltage: 110V~220V AC - 36V DC
• USB refresh rate: 1000Hz
• Quick Release Connection: Compatible D1

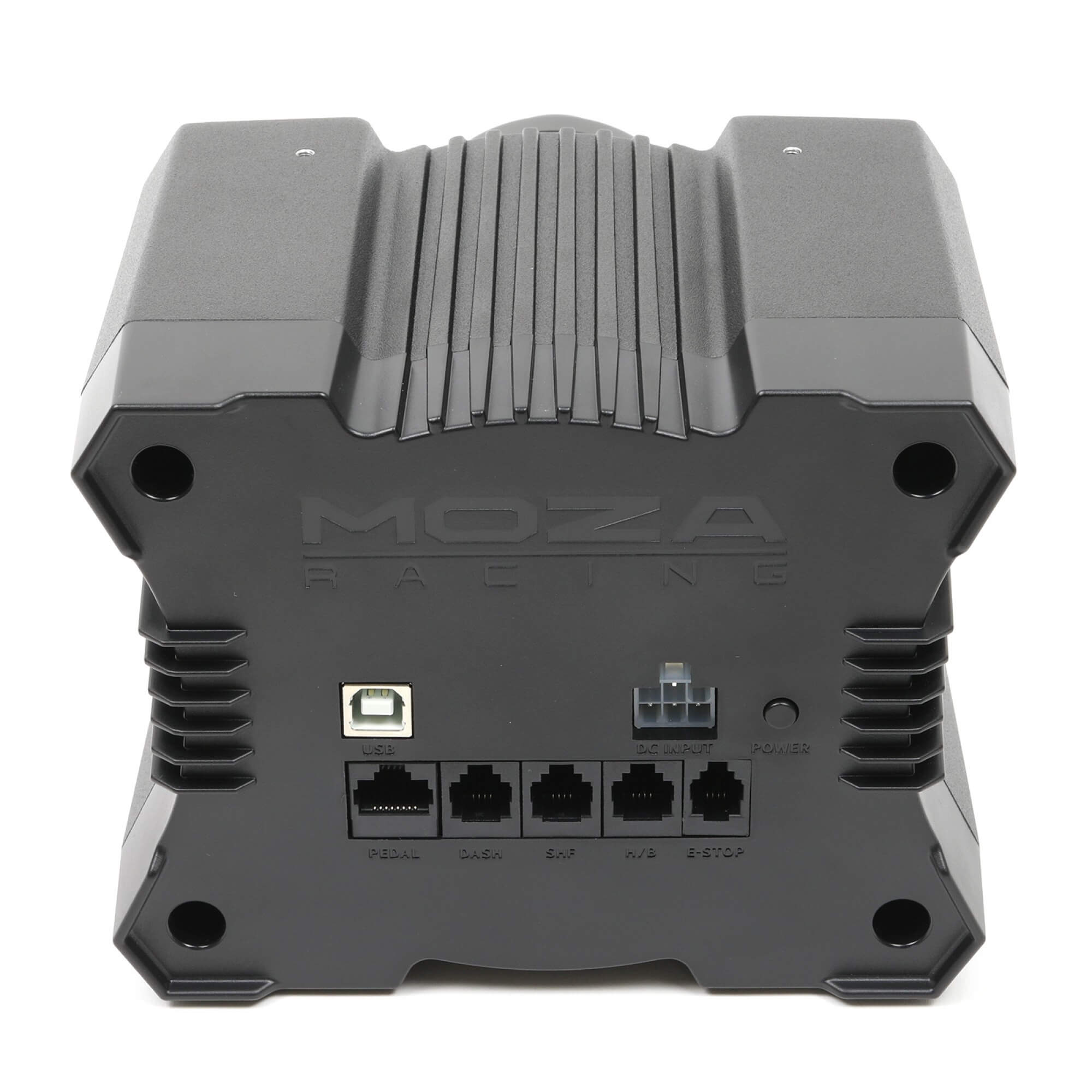

• Connection ports: Power switch, power supply, USB, Pedal, Dash, Shifter, Handbrake, E-stop.
• Mounting: 4 mounting points on the base (RSeat compatible); exclusive bracket allowing angle adjustment and side mounting; desk mounting bracket.
• Size: 240x157x124mm
• NEW ON THE R9 V2: Works with all MOZA wired or wireless steering wheels.
