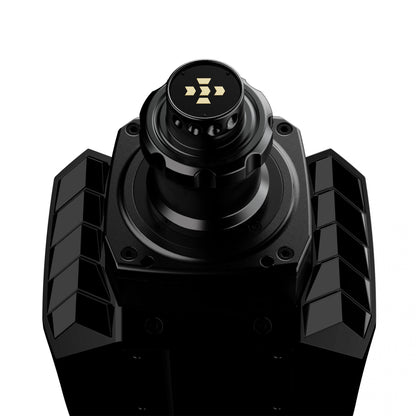

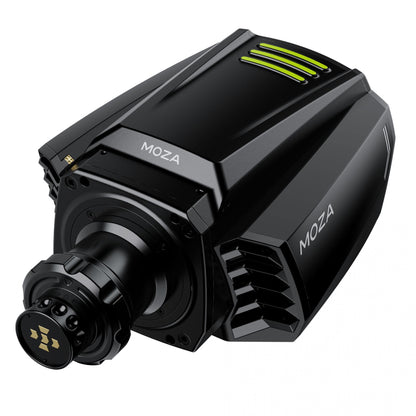

Moza R16 base Direct Drive

• On display and available for testing in our showroom
• Pick up your order in store and enjoy 15 free minutes on our simulators

The Moza R16 & R21 Direct Drive bases offer 16 and 21 Nm of torque respectively. Their aluminum alloy design, inspired by automotive engineering, combines robustness and elegance. Thanks to powerful and consistent torque, they faithfully reproduce the sensations of racing cars (F1, WRC, GT, etc.).

The innovatively designed rotor and settings via Moza software ensure smooth, precise, and uncompromising steering. With zero-latency wireless technology, the R16 & R21 provide total immersion and an ultra-realistic driving experience.

Firmware

16 Nm of torque

• Unmatched quality and durability.
• The R16 & R21 bases have excellent temperature performance. Even during the most demanding endurance races, the R16 & R21 will not reduce or dampen the output torque due to motor overheating. The temperature control system monitors the motor temperature in real time to prevent any potential temperature anomalies.

• The encoder has a resolution of 262,144 points. It gives the R16 and R21 an exceptional ability to analyze the wheel position to faithfully reproduce driving sensations.

• No matter the complexity of force feedback calculations. The unique Quad CPU can handle the load with maximum precision.
• Base, wheel, pedals, etc. settings can be modified via MOZA APP. Settings can be imported with one click on new simulators.
• Designed by experts in electric motors, the rotor uses innovative V-shaped structures with a very sharp side and concentrated coils with fractional slots. At equal volume, the R21's maximum torque is 30% higher. Torque fluctuations and cogging effect are further optimized, providing a very smooth steering feel.

• Fully compatible with all RSeat cockpits.


Specifications

• Usable platform: PC (Windows)
• Motor type: Direct Drive
• Maximum steering angle: Unlimited
• Maximum torque: 16 Nm
• Maximum power: 360W
• Input voltage: 110V~220V AC - 36V DC
• USB refresh rate: 1000Hz
• Quick Release connection: Compatible D1
• Connection port: Power switch, power supply, data, emergency stop switch, display screen, pedals, gear lever, handbrake.
• Mounting: 4 mounting points on the base (compatible with RSeat); exclusive support allowing angle adjustment and side mounting; desk mounting support. New: 4 mounting points on the face.

• Size: 327 x 170 x 130mm
